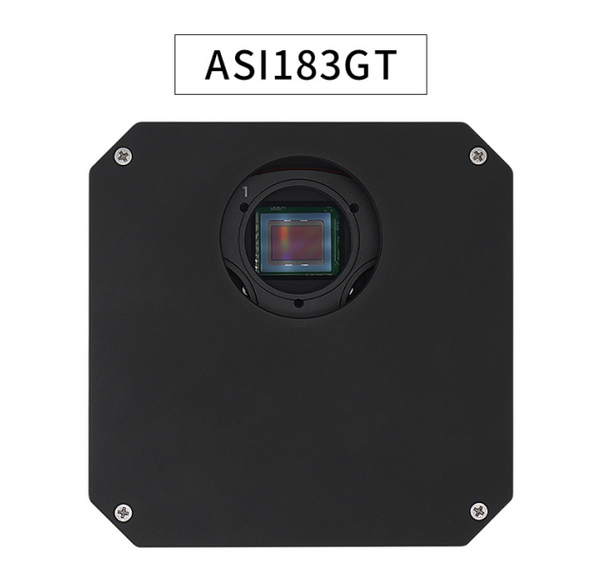

ZWO ASI183GT Monochrome Astronomy Camera With Integrated 5-Position EFW (ASI183GT)
ZWO's first CMOS cameras with internal filter wheels!
Our ASI GT camera range includes all the great features and performance of our original cameras but now includes an integrated 5-position ultra-quiet electronic filter wheels as well as new features such as 12V power distribution. Of course we retained features such as the integrated USB2 hub so now you can reduce the number of adapters and cables in your imaging setup with our integrated design.
The internal 5-position electronic filter wheel (EFW) can accept both 1.25” and 31mm filters. The EFW is driven by a whisper quiet high grade stepper motor.
Important Note: The thickness of the 1.25” filter cannot exceed 7mm (without threads), and the thread must be not more than 2.5mm to avoid the filter wheel striking the camera housing.
The body of the EFW is CNC milled from an aircraft grade aluminum block finished in an attractive and hardwearing anodized finish. The inner surface of the EFA has been especially treated to prevent internal light reflections.

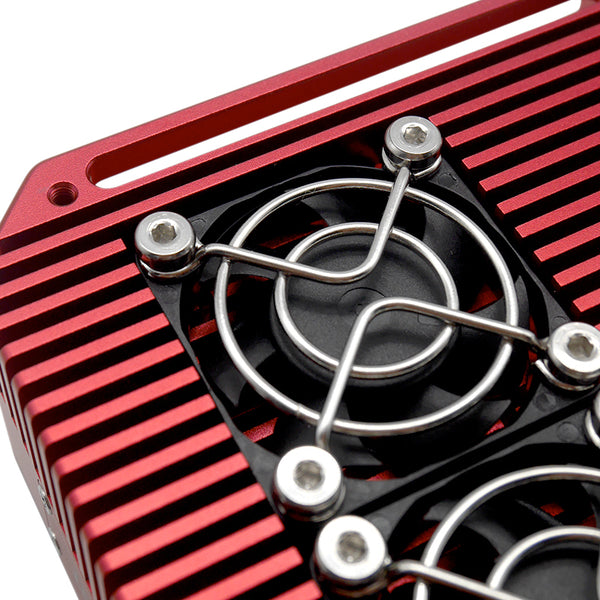

The camera body has 24 heat radiating grooves fitted with dual maglev fans to ensure the temperature difference before and after cooling remains between 40-45℃ below ambient temperature. (Tested at 30℃). The lower the ambient temperature is, the lower the delta-T will be. )

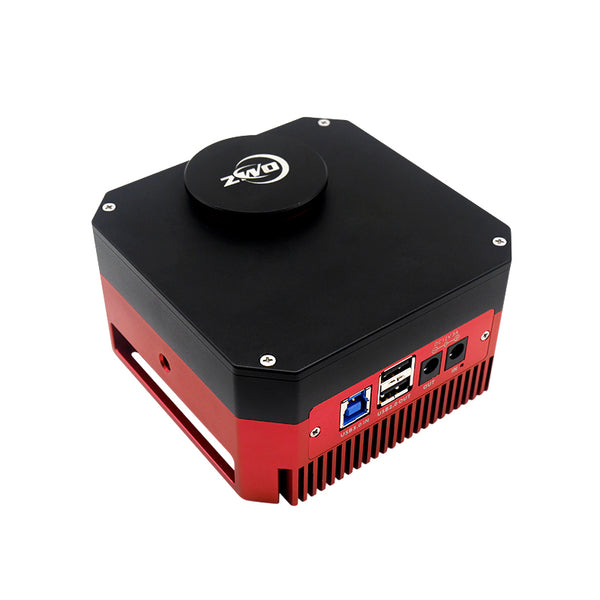

12V power supply, USB3.0 port & USB 2.0 Hub.
The GT camera includes a 256MB DDR3 memory buffer to help improve data transfer reliability.
|Imaging Camera Series||ZWO ASI183GT|
|Color or Monochrome Camera||Monochrome|
|Cooled or Uncooled||Cooled|
|Pixel Size in Microns||2.4|
|Pixel Array & Resolution||5496 x 3672 (20.2 MP)|
|Camera Sensor Manufacturer||Sony|
|Sensor Dimensions (mm x mm)||2.4x2.4|
|Sensor Diagonal (mm)||18.51|
|Peak Quantum Efficiency (QE)||~80%|
|Includes ST-4 Guide Port||Yes|

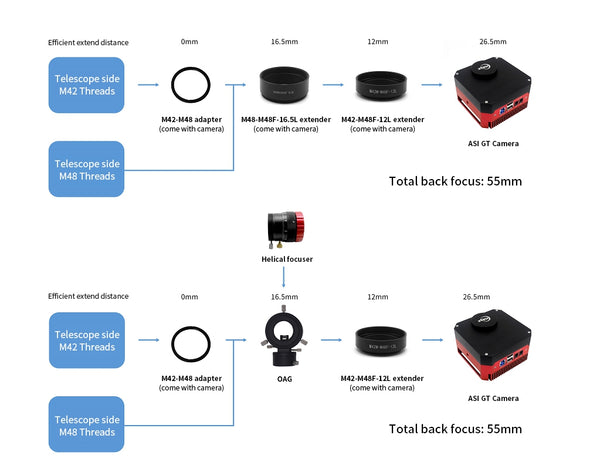

|Native Back focus (mm)||55|
|Computer Interface||USB 3.0|

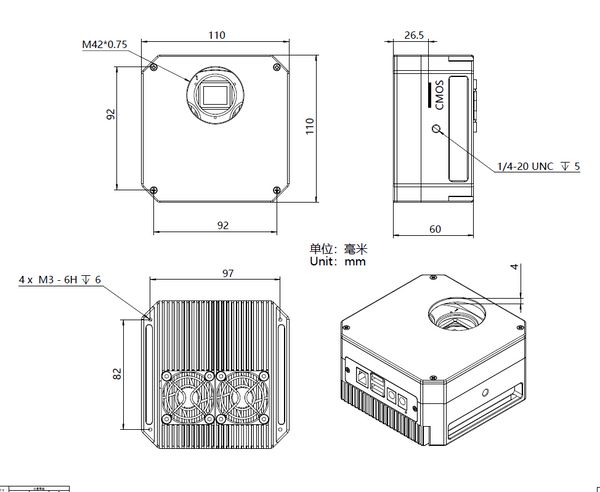

|Camera Dimensions||Length 110mm, Height 110mm, Thickness 60mm|
