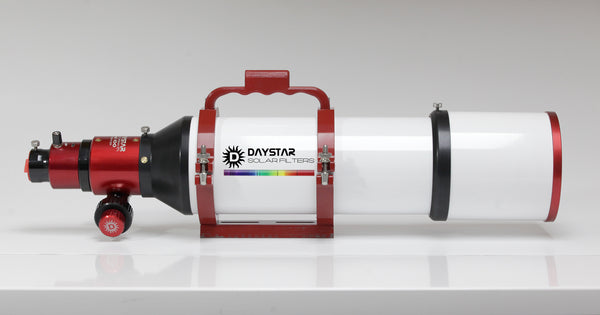

DayStar Instruments Sol 100mm Dedicated Solar Telescope (DS-SOL-100)
DayStar Instruments Sol 100mm Dedicated Solar Telescope (DS-SOL-100)
Products in the Same Family
Model - Prominence (>0.5Å)
Why Purchase from All-Star Telescope?
Free Expert Support
Whether you are a first timer needing help with setting up or an enthusiast that can't quite make that one thing work, our expert staff are ready to support your needs. With decades of knowledge and first hand experience we've been there and we can help you through it!
Stress Free, Secure Transactions
You can trust purchasing and delivery with All-Star Telescope. All of our transactions are 100% secure and Level 1 PCI DSS compliant thanks to Shopify's ShopPay platform. For additional protection, we insure 100% of the value of every shipment we make. If it get's lost during shipment, we replace it. If it gets damaged during shipment, we replace it. We make sure your product arrives exactly as you would expect it to; we promise.
We also ensure privacy protection. We never keep any of your credit card information on file and any of your personal data is stored according to our policies.
30 Day Return Policy
Buy with confidence knowing that we accept returns up to 30 days after purchase. We want you to have something you will actually use and we are confident that we keep good quality products in our store with No Junk.
Price Match Promise
Shipping around for the best price is tough, we make it easier by offering the best pricing in the market. But if you find a better price on an in-store item somewhere else we will match it!
Product Description
Simplicity meets performance in our all new no compromises 100mm Hydrogen Alpha solar telescope. This integrated solar telescope offers safety and ease of use to show prominences, solar flares, active regions, chromosphere, spicule, and many more exciting phenomena visible in red Hydrogen Alpha light. With changes on the Sun visible after only a few minutes, each day will bring fresh new views never to be repeated.
Not Just a Quark in a 100mm Telescope!
Daystar's clean sheet design improves upon the great value and versatility of the Quark.
- Truly Dedicated and Integrated: The barlow of the Sol 100 is the actual drawtube of the focuser, complete with brass focusing rack. This conjoinment makes the assemblage of components on the rear of the telescope tighter and more compact with no wobble from adding components into a drawtube. The Quark IS the drawtube.
- The Quark can’t be accidently removed during outreach events by an unsuspecting curious child. Not only is the etalon cup bolted to the telescope, but the barlow and blocker are integral components deep in the structure of the instrument. The Sol 100 can’t be unsafe and a telescope at the same time.
- Lenses were all prescribed and optimized as a cohesive unit for h-alpha. This allowed us to achieve the parallelism required for narrow bandpass at the etalon at a faster focal ratio. Etalons require near parallel light to deliver best performance. Clean sheet telecentric lens design accomplishes this at a faster focal ratio.
- Full Disk with 100mm. Lots of astronomers want a full disk through their solar telescope. This can be difficult to achieve with 100mm of aperture. This custom design delivers 0.75° field of view at 100mm aperture.
- Nighttime telescopes are designed and coated for full spectrum, where their design wavelength is 500 nanometers. The Sol 100 was designed and coated uniquely for the Hydrogen Alpha 656nm wavelength.
- No more wild focus shifts! When a barlow lens is used like the 4.3X which is in a Quark, focus becomes super-sensitive and the range of travel needed is 1/4 of the turns. That makes it possible to get hopelessly lost when trying to focus a regular focuser with a Quark mounted. Our Sol 100 focuser offers the full focus range between Visual with a 2" diagonal and an eyepiece – all the way down to a camera mounted directly on the Quark housing. But not so much as to get lost.
- The built-in solar finder embedded in the mounting rings means never having to mount or align an aftermarket solar finder. The solar finder dot is always collimated with the scope. Even if your rings are actually crooked! The finder is always aligned to the instrument.
Specifications
| Aperture | 100mm (3.94") |
| Effective Focal Length | 1690mm |
| Focal Ratio | F/16.9 |
| Field of View | 0.75°, Passes full solar disk |
| Wavelength | 6562.8 angstroms (656.28 nm) |
| Bandwidth | - Chromosphere (0.5Å FWHM or narrower, which still shows prominences!) - Prominence (0.5Å FWHM or larger, for ideal prominence viewing!) |
| Tuning | Electronic PID controlled thermal tuning with manual +/-0.5Å range and 0.1Å steps) |
| Settling Time | Approximately 5 minutes after power up or change of wing shift |
| Barlow | Fully integrated 4.3x telecentric barlow optimized for Hydrogen Alpha |
| Blocking Filter | Integrated 18mm |
| Clear Exit Aperture | 19mm |
| Focus Travel | Accommodates camera flush to filter, and visual use through 2" diagonal. |
| Motorized Focus Compatiblity | Focuser shaft sizes of 6mm coarse and 5/32" (4mm) fine are compatible with most third party focus motors. Three female M4 screw holes are provided for affixing motor mounting brackets. The fine focus reduction cone has a 1.34" (34mm) diameter after both knobs are removed. |
| Dew Shield | Locking; Retractable; |
| Dovetail | Vixen compatible with 1/4-20 tapped hole for use with camera tripod. |
| Power Required | USB 5v power, 1.5 amp, micro-B connector. Power must be supplied for proper operation |
| Power Adapter | 90-240VAC AC power adapter is included, with US, UK, Euro, and Australian plugs |
| Ambient operating temperature range | 40-100°F (4-38°C) |
| Dimensions | 150mm wide, 163mm tall, 489-613mm long |
| Main tube Outside Diameter | 111mm |
| Dew shield Outside Diameter | 127mm (including FC130 flat cap) |
| OTA Only Weight | 6.6lbs / 3kg |
| Tube Weight (w/ rings & handle) | 8lb / 3.6 kg |
| Warranty | 3 years |
