Product Description
Lightweight Portability, Redefined

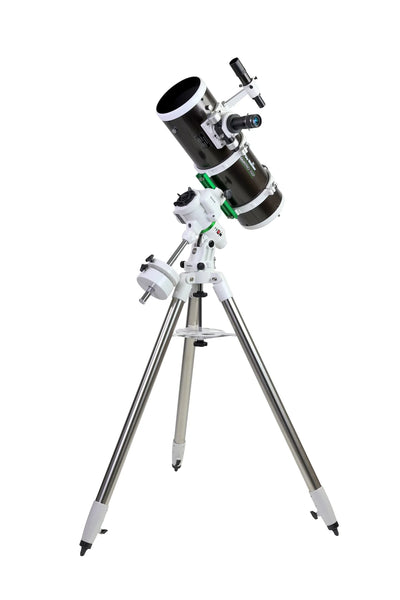

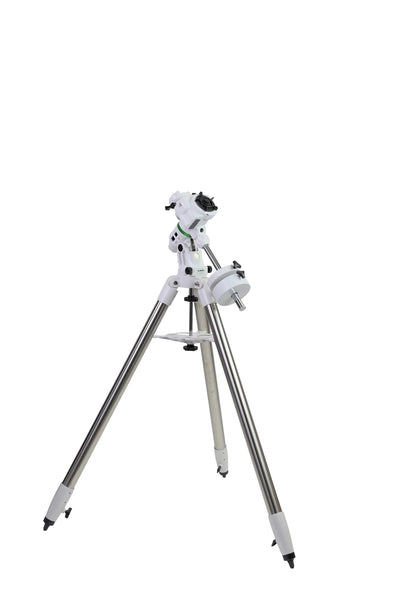

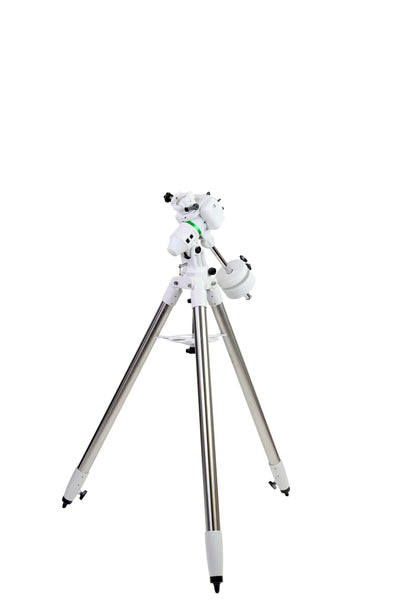

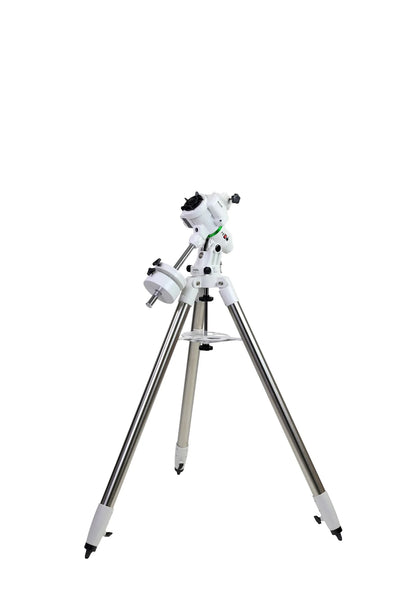

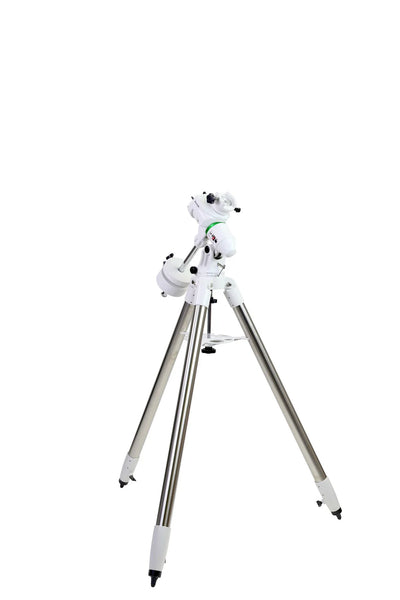

The EQ-AL55i Pro is the perfect entry to intermediate level equatorial platform for observers and imagers looking to build a serious rig without breaking the bank.
Redesigned from the popular EQM-35 the EQ-AL55i features fully encased motor housings and two positions for the counterweight bar and optional pier extension making this mount the perfect choice for observers and imagers in lower latitudes.
Featuring Wi-Fi, Bluetooth SynScan, and ASCOM telescope control, 22-pound payload capacity, a guidescope and SNAP port, the EQ-AL55i is a perfect choice for a mid-size imaging mount.
*Pier extension, OTA, and Hand Controller sold separately
Specifications
| Mount General Specifications | |
| Mount type (AZ, EQ or borth) | Equatorial |
| Mount weight insturment capacity | 22 pounds (9.97kg) |
| Mount head size | 286mm x 241mm x 133mm |
| Mount head weight | 8.2 pounds (3.7kg) |
| Tripod Weight | 11.5 pounds |
| Tripod Retracted/Extended | 45"/58" |
| Tripod Spread Retracted/Extended | 33.5"/45" |
| Tripod folded measurements | 39" long |
| Tripod Leg diameter | 1.75" |
| Counter weight bar | 10.75" x 20mm |
| Mounting Saddle type | V-style |
| Counterweight bar? | Yes |
| Counterweight bar retractable? | No |
| Counterweight bar length and diameter | 15"x31.5mm |
| Type of motor | Servo |
| Drive type (belt, gear, direct, etc.) | Gear |
| Spring Loaded Worms | No |
| RA gear size | 73mm |
| Polarscope? | Yes |
| Polarscope illuminated? | Yes |
| Tracking Modes | Sideral, Solar, Lunar |
| Latitude range (in degrees) | 0°-80° |
| Electronics Specifications | |
| GoTo | Yes |
| Freedom Find? | No |
| Hand controller port | Yes (RJ-45, 8-pin) |
| Guide Port? | Yes (RJ-12, 6-pin) |
| SNAP Port? | Yes (2.1mm) |
| PC connect USB port? | Yes (USB-C) |
| Cable management? | No |
| Cable management: USBs (how many and type) | None |
| Cable management: Power ports (how many and type) | None |
| Cable management: AUX ports (how many and type) | None |
| Built-in GPS? | No |
| Built-in WiFi? | Yes |
| Hand controller? | No* (Optional) |
| Hand controller cable used | Yes |
| GoTo Database | 42,000+ |
| Power requirements? | DC9 ~ 12.6V |
| Internal Battery Pack | No |
| Mount power port size and style | 2.1mm female |
| Included Accessories | |
| Counter Weight | 3.9 lbs (1.8kg) & 7.7 lbs (3.5kg) |
| EQ base | Optional |
| Dec. Bracket | Optional |
| Ball Head adapter | Optional |
| Polarscope illuminator | Included |
| Polarscope | Yes |
| Tripod | Yes |
| Pier Extension | No |
| Power Cable? | Yes |
| SNAP cable? | No |
| Additional Accessories | None |
| Hand controller holder? | No |
| Manual | Yes |
| Case | No |
| Case Measurements | No |
| Shipping Weight | 25.35 pound (14.8kg) |
| Shipping Dimensions | 40" x 19" x 9" |
