Brand: Sky-Watcher

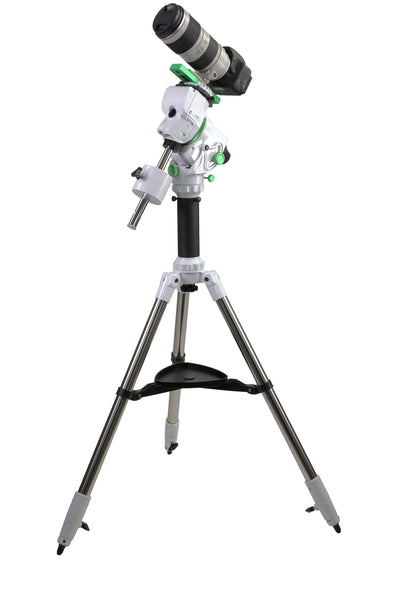

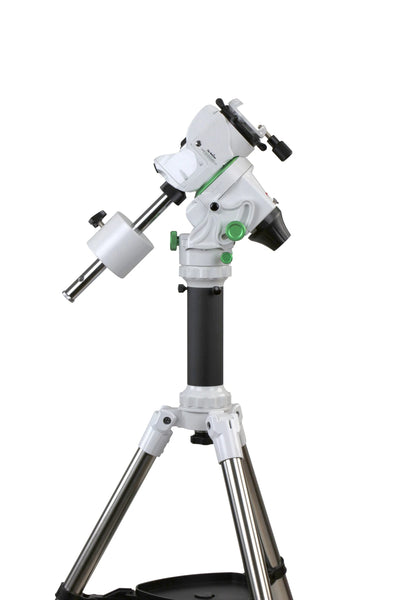

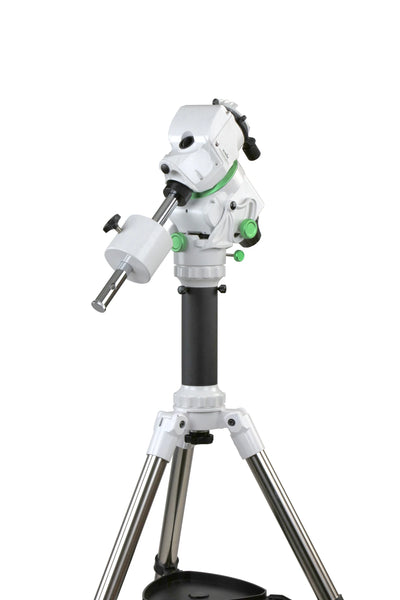

Sky-Watcher Star Adventurer GTi mount kit (S20595)

S20595

Brand: Sky-Watcher

Sky-Watcher Star Adventurer GTi mount kit (S20595)

S20595

  • Full GoTo performance in a portable Star Adventurer mount
  • Lightweight equatorial mount for deep space, widefield, and nightscape astrophotography
  • 11-pound payload capacity
  • Multiple pre-programmed tracking rates including sidereal, solar, and lunar

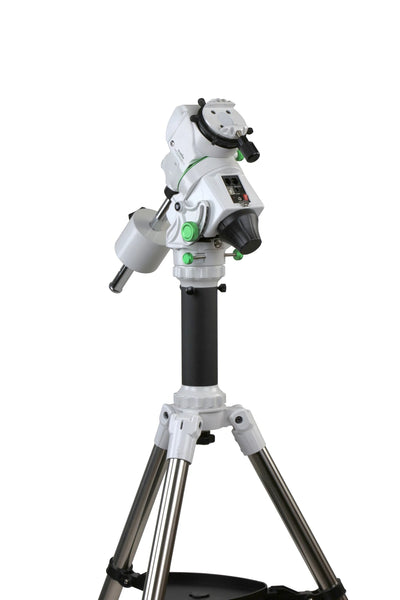

  • Interfaces: USB, autoguider (ST4), SynScan hand controller, and a SNAP port for DSLR shutter control programmable via free SynScan Pro app
  • Control with your smartphone via Wi-Fi or with the optional SynScan hand box
  • Built-in illuminated polar scope for precise alignment

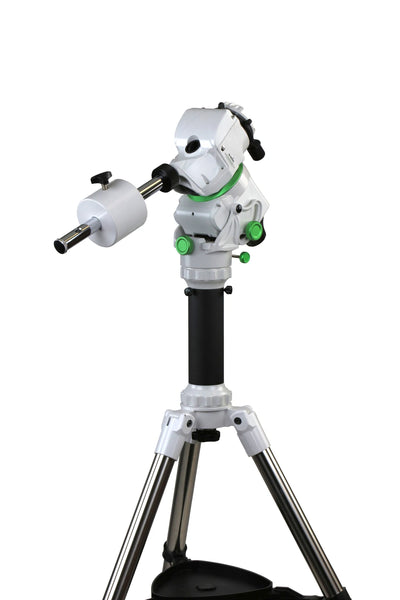

  • Dual counterweight positions for use at low latitudes
  • Powered by eight AA batteries (not included) or external source via 2.1 DC 12v port
  • V-style dovetail
  • Lifetime free firmware upgrades
  • 3/8-inch tripod mount

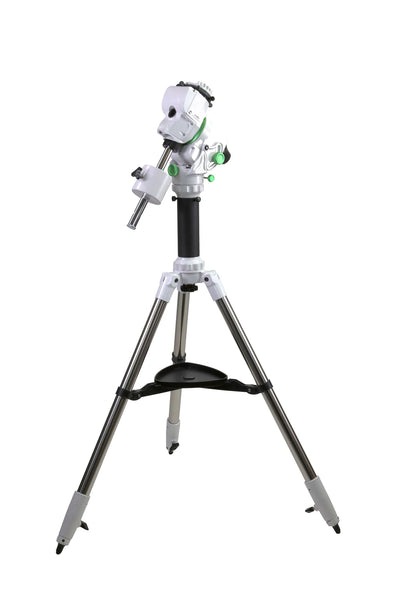

  • Star Adventurer GTi steel tripod and pier extension included in Mount Kit (SKU S20595)
  • Optional tripod pier extension, shutter release cable, ball head adapter, and Star Adventurer tripod
16% OFF
$840.00 CAD
Save: $160.00

Easy Payment Options with .

16% OFF
$840.00 CAD
Save: $160.00

Easy Payment Options with .

Free Expert Support
Stress Free, Secure Shopping
30 Day Return Policy
Price Match Promise
Full Details What's in the Box? Specifications Reviews and Questions

Product Description

The all-new Star Adventurer GTi features a built-in illuminated polar scope for precision alignment in EQ mode, ports for USB, autoguider, V-style dovetail, optional SynScan hand controller, and SNAP shutter control for your DSLR (programmable via Sky-Watcher’s free SynScan Pro app for iOS and Android). Star Adventurer GTi also includes a dual-position counterweight for use at low latitudes as well as full smartphone control via Wi-Fi.

Since its introduction in 2014, the Star Adventurer has been at the forefront of the lightweight, portable astroimaging revolution. And now, with the Star Adventurer GTi, we take the next step with full GoTo performance in a compact package.

The all-new Star Adventurer GTi features a built-in illuminated polar scope for precision alignment in EQ mode, ports for USB, autoguider, V-style dovetail, optional SynScan hand controller, and SNAP shutter control for your DSLR (programmable via Sky-Watcher’s free SynScan Pro app for iOS and Android). Star Adventurer GTi also includes a dual-position counterweight for use at low latitudes as well as full smartphone control via Wi-Fi.

With the added GoTo feature plus multiple tracking rates including lunar, solar, and sidereal, the heavens are yours to capture and explore.

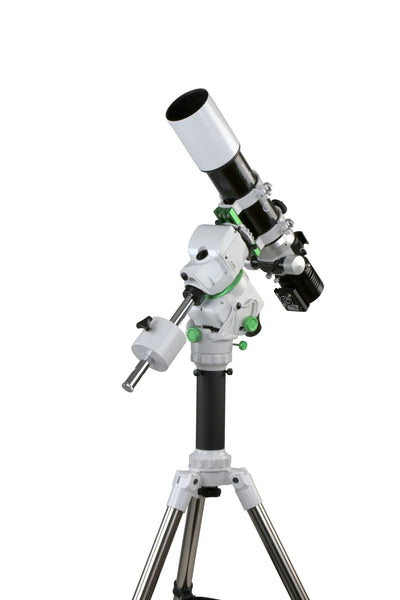

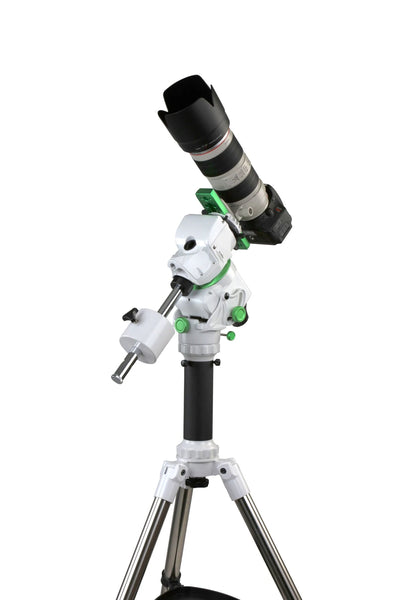

With its 11-pound payload capacity, Star Adventurer is well-equipped to handle your DLSR or mirrorless camera sporting a wide-angle or telephoto lens plus accessories, a small aperture astrograph with a dedicated astro camera, or even small OTA’s such as our Skymax series of Maksutov-Cassegrain telescopes perfect for deep space objects, the Moon, and planets.

Available in two configurations (with or without tripod and pier extension), Star Adventurer GTi is the perfect mount for the astrophotographer that wants the ultimate in both performance and portability.

What's in the Box

  • Counter weight5 lbs (2.26kg)
  • Polarscope (installed and aligned)
  • Tripod
  • Pier Extension
  • PC link cable
  • ManualYes

Specifications

General Mount Info
Mount Type Equatorial
Mount instrument capacity 11 lbs.
Mount head size 227mm x 227mm x 125mm
Tripod mounting thread 8-Mar
Mounting saddle type V-style
Counterweight bar included Yes
Counterweight bar retractable? Yes, thread-on
Counterweight bar length and diameter 213mm and 20mm
Type of motor Mini-DC Servo
Drive type Gear
Illuminated Polarscope? Yes
Tracking Modes Sidereal, Solar, Lunar
Latitude range 0-70 degrees
Computer/Drive System Info
GoTo Yes
Hand controller port Yes
Guide port Yes
SNAP port Yes
PC connect USB port Yes
Cable management No
Built-in GPS No
Built-in WiFi Yes
Hand controller No
Power requirements 12 volt
Internal battery pack Yes (8x AAs)
Mount power port size and style 2.1mm female
Included Accessories
Counter weight 5 lbs (2.26kg)
Polarscope Yes (installed and aligned)
Tripod Yes
Tripod Heights (Retracted/Extended) 26.75"/44.5" (68cm/113cm)
Tripod Weights 5.5 lbs (2.49kg)
Pier Extension Yes
Pier Extension height 8.5" (21.6cm)
Power cable No
PC link cable Yes
SNAP cable No
Hand controller holder No
Manual Yes
Case No
Shipping weight 30 lbs (13.6kg)
Shipping dimensions 44"x13"x9"

Customer Reviews

Based on 6 reviews
83%
(5)
17%
(1)
0%
(0)
0%
(0)
0%
(0)
d
d.m.
I have recieved extensive help with this mount and am happy with the results I have gotten

This mount is excellent for a begginer, some errors might occur while trouble shooting but usually user error. The mount tracks fairly well. The 2 star alignment works a little better in the synscan pro app. Will be using this as my goto( no pun intended)

S
S.
Nice little tracker

This device is super easy to transport, and works equally well for SLR milky way photography as it does for zoom lens deep space images.
I like how the tracker and tripod can be transported in a built position, because set up and alignment takes no more than 5 mins. Highly recommend this product!

B
B.N.
Starter kit

All the things you would need in your starter pack for astrophotography!

B
B.M.
Great Tracking

Perfect starter scope for astrophotography. Excellent tracking, easy to set up.

F
F.
Great mount

I purchased the GTi to do astrophotography with an 80mm refactor. It works great with this setup. It is light so easy to transport and setup. The images that I took where extremely clear with pin point stars. I'm extremely happy with the GTi.
