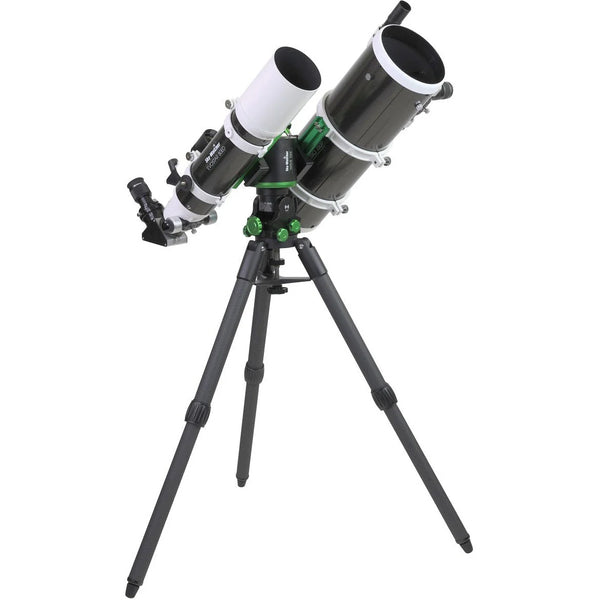

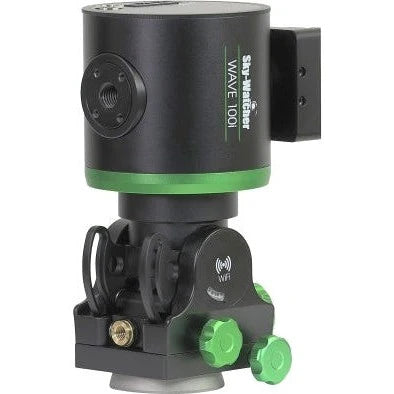

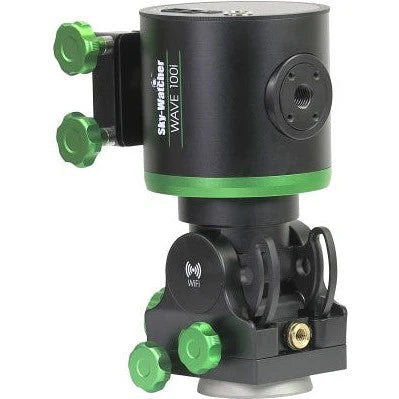

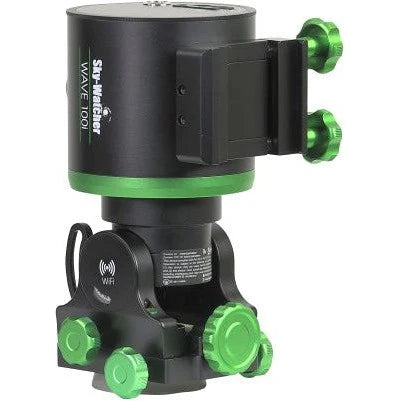

Why we love the SkyWatcher Wave 100i Strainwave Harmonic Drive Mount | S30900
Product Description
HIGH TORQUE. HIGH PRECISION. HIGH PORTABILITY.
Bringing Balance to the Force
Strainwave mounts are particularly suitable for serious astronomers and astrophotographers who require precise control over their telescope’s movements.
Weighing only 9.5 pounds and carrying a 22-pound-per-saddle payload (33lb. in EQ mode with the optional counterweight kit), the Wave 100i is the perfect grab-and-go mount that can moonlight as a dual saddle astronomy outreach dynamo or an equatorial imaging mount. Featuring a whisper-quiet slew speed of 10 degrees per second, our new strainwave mounts can even track satellites and space stations.
Optional Accesories
The Wave series features a total line of accessories to complete your astronomical experience, including carbon fiber tripod, pier extension, and stainless steel counterweight kit.
What's in the Box
Specifications
| General Mount Info | |
| Mount Type | Strainwave Harmonic Drive |
| Transmission Mode | Stepper motor + belt drive and harmonic reducer |
| Total Transmission Ratio | 300:1 |
| Payload Capacity With Out Counterweight | 22 lbs |
| Payload Capacity with Counterweight | 33 lbs |
| Mount Head Weight (lbs) | 4.3kg 9.5 lbs |
| Max Slew Rate | 2400x (10 degrees per second) |
| Latitude Range | Continuously adjustable from 0° to 90° |
| Mounting Saddle Type | Single Hybrid Vixen/Losmandy |
| Power Type | DC12V |
| Tracking Rates | Sidereal, solar, Lunar |
