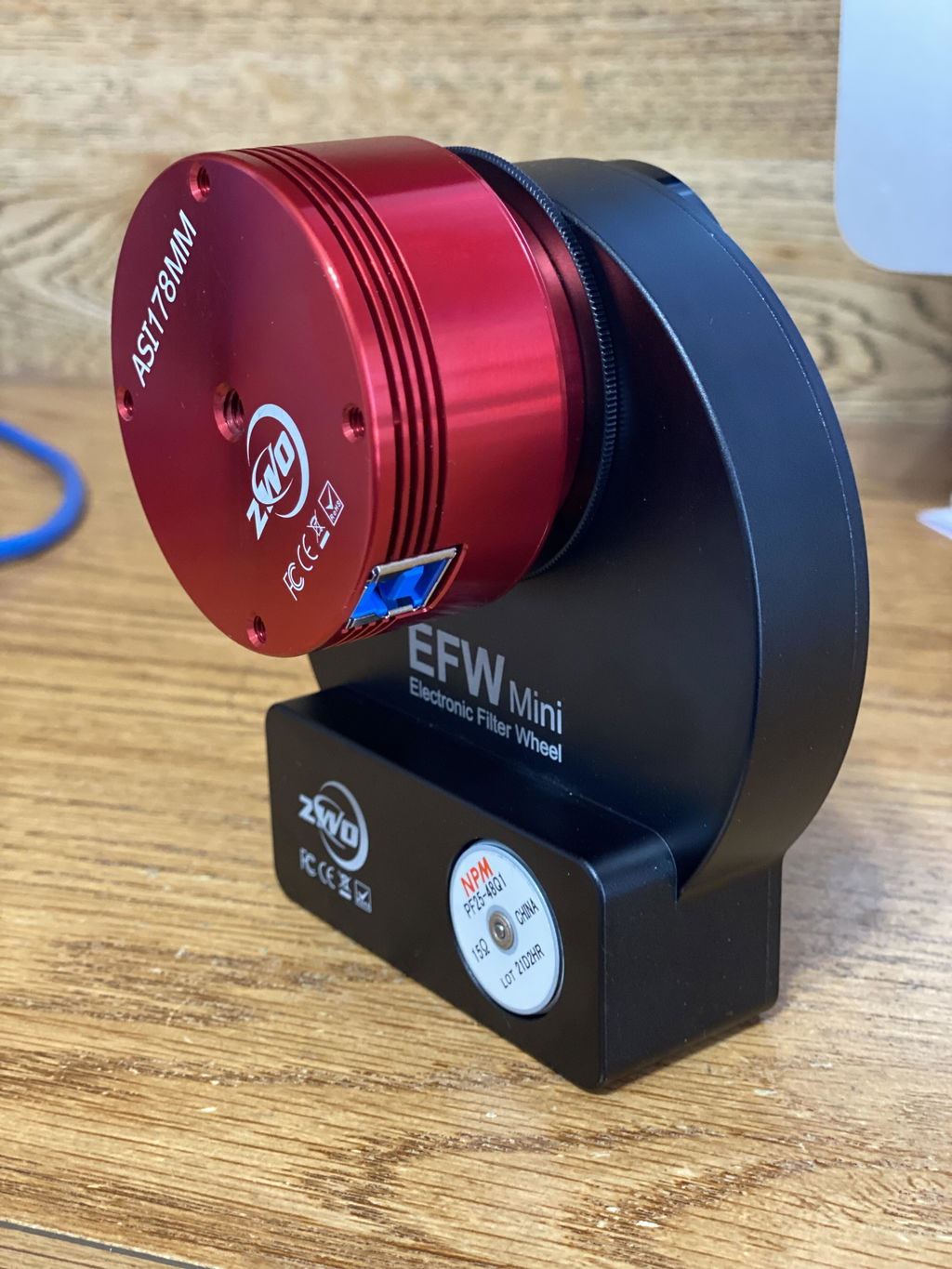

ZWO ASI178MM 14Bit ADC CMOS Monochrome Cooled Camera (ASI178MM)
Back-illuminated CMOS Image Sensor with 14bit ADC. ASI178MM has a 1/1.8″ and 6.4M pixels sensor IMX178 with SONY STARVIS and Exmor R Technology.
Description
Sony IMX178 Camera Sensor
Back-illuminated CMOS Image Sensor with 14bit ADC. ASI178MM has a 1/1.8″ and 6.4M pixels sensor (IMX178) with SONY STARVIS and Exmor R Technology.
Notice: depends on user’s feedback, this IMX178 sensor has line pattern noise when do Ha solar imaging, please take flat frame for calibration(out of focus or add a barlow lens to take flat frames). We recommend our ASI1600/ASI174 mono camera for Ha solar imaging.
Extremely low read noise(2.2e -1.4e) , high sensitivity and 14bit ADC make it very suitable for astronomy and microscopy photograph
USB 3.0 Port & ST4 Port
USB 3.0 Port: Can provide 5Gb bandwidth to let ASI178 run at 30 fps (14bit, normal mode) or 60 fps (10bit, high speed mode) at full resolution(6.4Mega).
ST4 Port: Can be used connect with auto guide port of mount, for guiding.
Specifications
Sensor: 1/1.8” CMOS IMX178
Resolution: 6.4 Mega Pixels 3096*2080
Pixel Size: 2.4µm
Sensor Size: 7.4mm*5mm
Diagonal: 8.92mm
Exposure Range: 32µs-1000s
ROI: Supported
Non-volatile memory/On camera storage: Build-in total 192K byte user-accessible space(image size up to 480X320)
Interface: USB3.0/USB2.0
ST4 Guider Port: Yes
Focus Distance to Sensor: 12.5mm
Shutter Type: Rolling Shutter
Protect window: AR window
Operating System Compatibility: Mac, Windows, Linux
Interface: USB3.0/USB2.0
Bit rate: 14bit output(14bit ADC)
Adaptor: 2″ / 1.25″ / M42X0.75
Dimension: φ62mm X 36mm
Weight: 120g or 4.2 ounces (without lens)
Working Temperature: -5°C—45°C
Storage Temperature: -20°C—60°C
Working Relative Humidity: 20%—80%
Storage Relative Humidity: 20%—95%
