Brand: Sky-Watcher

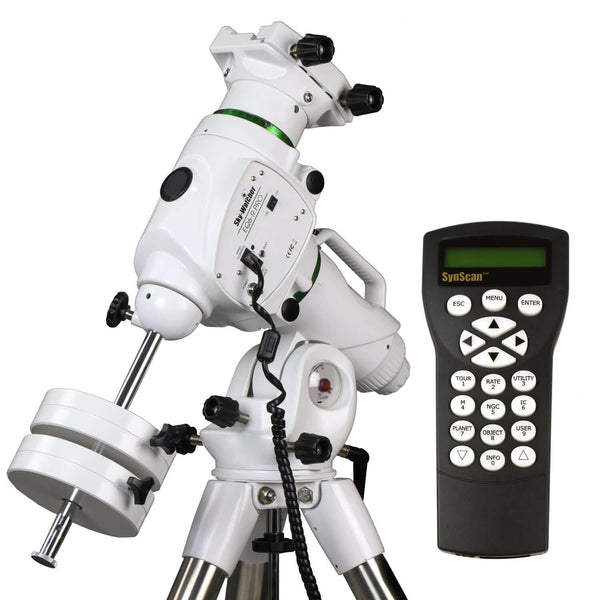

SkyWatcher EQ6-R Pro Mount (S30300)

S30300

Brand: Sky-Watcher

SkyWatcher EQ6-R Pro Mount (S30300)

S30300

The three most important pieces of kit in astrophtography are mount, mount, mount and these are incredible mounts. Proven over years of real world astrophotography experience.
  • Massive 44-pound payload capacity support guiders, filters, cameras, and more

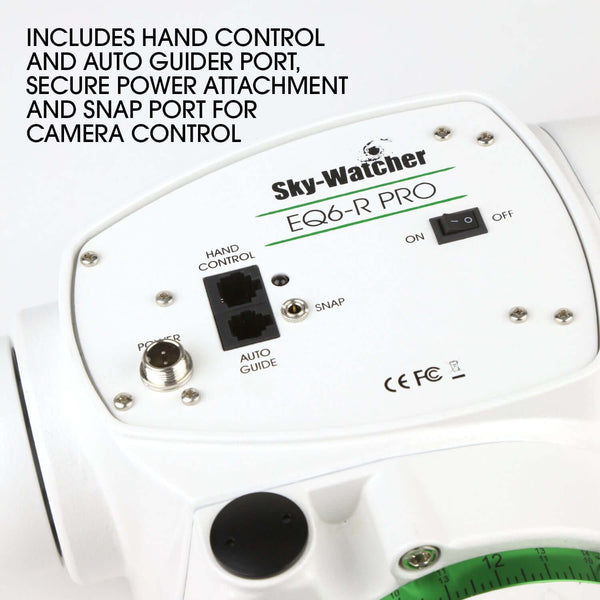

  • Equatorial GoTo mount with built-in USB PC control

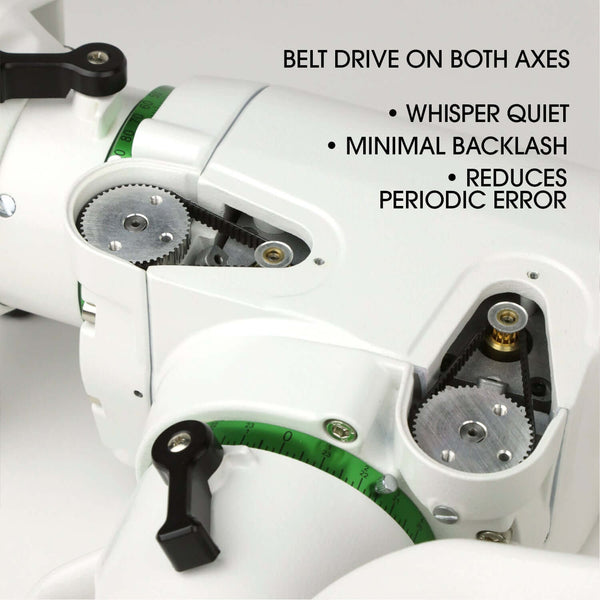

  • Belt drives provide minimal backlash and significantly reduced periodic error while remaining whisper quiet
  • Stepper motors have no internal gear box, further reducing backlash
  • SNAP port eliminates the need for remote shutter release cable
  • Autoguide port compatible with most of today’s best autoguiders
  • Sturdy carry handle to ensure safe and easy set-up
16% OFF
$2,290.00 CAD
Save: $440.00

Easy Payment Options with .

What is a Backorder?
16% OFF
$2,290.00 CAD
Save: $440.00

Easy Payment Options with .

What is a Backorder?
Free Expert Support
Stress Free, Secure Shopping
30 Day Return Policy
Price Match Promise
Why We Love It Full Details What's in the Box? Specifications Reviews and Questions

Why we love the SkyWatcher EQ6-R Pro Mount (S30300)

The Sky-Watcher EQ6-R (S30300) is a benchmark product.  They have a great payload capacity of 44lbs, they're easy to set up, they work seamlessly with great products from QHYCCD and ZWO, and they have a history of being incredibly reliable.  The mount includes advanced features like periodic error correction, for advanced astrophotography.  If you're looking for the best mount for astrophotography this should be on your short list.  We regularly keep the EQ6-R in stock and ship to Canada and the rest of the world from our warehouse in Edmonton.

Recommended Accessories

Sky-Watcher does a great job of included any necessary accessories with their produts and the EQ6-R Pro is no exception. A retractable counterweight bar is supplied, allowing for easier transportation. Also, two 11-pound counterweights are included to help balance any payload. The EQ6-R Pro saddle is compatible with both wide D- and narrow V-style mounting plates, making it easy to use different optical tubes even if they don't use the same mounting hardware.

That said, there are a few items that we find really helpful:

  1. The Sky-Watcher AC adapter makes it really easy to power your mount when you're at home.
  2. The Celestron Lithium Iron Phosphate rechargeable battery pack makes it easy to power your mount when you're away from home.
  3. The Sky-Watcher SyncScan wifi adapter sets up a wifi hotspot so that you can control your mount with the excellent (and free) SyncScan app on your phone or tablet.
  4. If you're looking to vastly simplify and improve your polar alignment, consider the QHYCCD Polemaster.

There are other accessories including GPS modules, carrying cases, additional counterweights, pier extensions, etc. all of which can help to tailor the Sky-Watcher EQ6-R Pro to your exact requirements.

Product Description

An Astrophotography Powerhouse

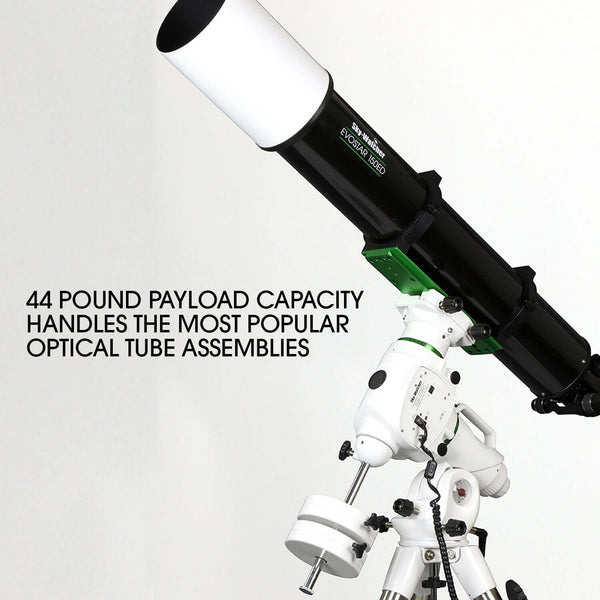

The SkyWatcher EQ6-R boasts a plethora of features to support astrophotographers in their craft. The built-in ST-4 autoguider port turns this mount into an astrophotography powerhouse, allowing you to use most of today’s best autoguiders. Using the supplied USB-B cable, you can control the telescope from your computer and take advantage of today’s most advanced astronomy software. With a weight capacity of 44 pounds, the EQ6-R can handily support an optical tube, imaging accessories, and camera.

Silent Yet Precise Slewing

The EQ6-R Pro uses stepper motors with a 1.8° step angle and 64 micro steps driven. Stepper motors are quieter than servo motors, providing accuracy up to 1 arc minute without waking your neighbors to the tune of buzzing motors.

Periodic Error Correction

Periodic tracking error is present in all equatorial telescope mounts, and is due to the design of the internal gears. The Sky-Watcher EQ6-R includes a periodic error correction (PEC) function to help correct this.  We strongly recommend taking the time to properly balance and polar align the Sky-Watcher EQ6-R before delving into advanced features like PEC.

42,000+ Object Database

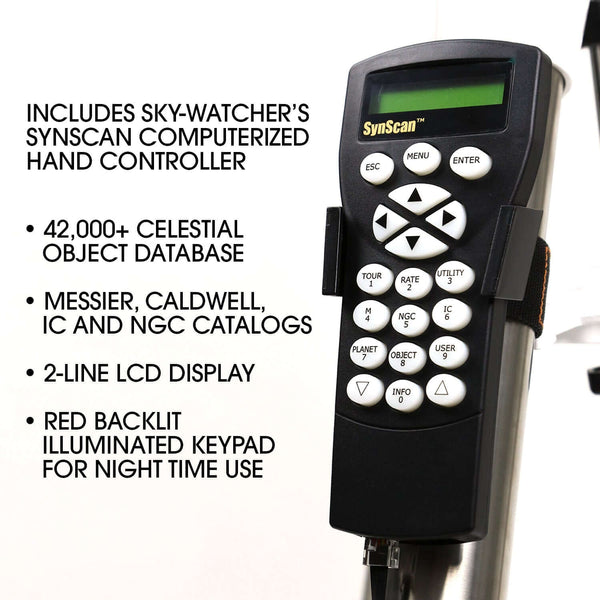

Using our proprietary SynScan hand controller, the EQ6-R Pro provides a user-friendly interface with automatic slewing to over 42,000+ objects in the night sky. The hand controller can also connect to a computer using the supplied USB-B cable, enabling computer control with most astronomy programs. For the astrophotographers looking to reduce periodic error, the SynScan hand controller has built in PEC training that can be configured while in the field!

Flexible Polar Alignment

Sky-Watcher includes an illuminated polar scope to aid the polar alignment process. The polar scope features a circular grid reticle for the Northern Hemisphere, consistent with today’s popular polar alignment apps. For astronomers in the Southern Hemisphere, the constellation Octans is built into the reticle as well. Even without a clear view of Polaris, the EQ6-R Pro can be polar aligned using our SynScan hand controller. Simply choose one of the visible stars listed and use the latitude adjustment screws to center it in the eyepiece.

What's in the Box

  • Sky-Watcher EQ6-R Pro Equatorial Mount
  • D/V saddle plate to handle a wide variety of OTAs
  • Built-in illuminated polar scope is factory aligned to the mount's center axis and best accuracy right out of the box
  • 42,000+ object data base
  • Retractable counterweight bar for easy stowage
  • Steel tripod for rock-solid performance
  • DC power cord included
  • Two 11-pound counterweights

Specifications

General Mount Info
Mount Type EQ
GoTo Yes
Payload Capacity (lbs) 44
Mount Head Weight (lbs) 38
Tripod Weight (lbs) 16.5
Fully Assembled Weight (w/ weights) 76.5
Tripod Leg Diameter 2"
Mounting Saddle Type D/V
Power Type 12V (4 amp minimum)
Clutch Locking Lever
Polar Scope Built In
Latitude Range (degrees) May-65
Computer/Drive System Info
Object Database 42900+
Controller Hand Controller
WiFi Optional WiFi dongle
Polar Align Assist Yes
PC Direct Connect Port Yes
Auto Guide Yes
Permanent Periodic Correction Yes
Dual Encoders No
DSLR Enterface Yes
Included Weights 11lbs (two)
Motor Type Stepper
Drive System Belt

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
D.B.
Excellent mount

Very pleased with the mount and also very pleased with the kindness and support for the All-Star Telescope’s team!

I highly recommend this mount

J
J.B.
SkyWatcher EQR Pro Mount

Although I haven’t used the amount yet my initial response to looking at it was very impressive.

S
S.B.
Guiding is now limited by the seeing instead of my mount

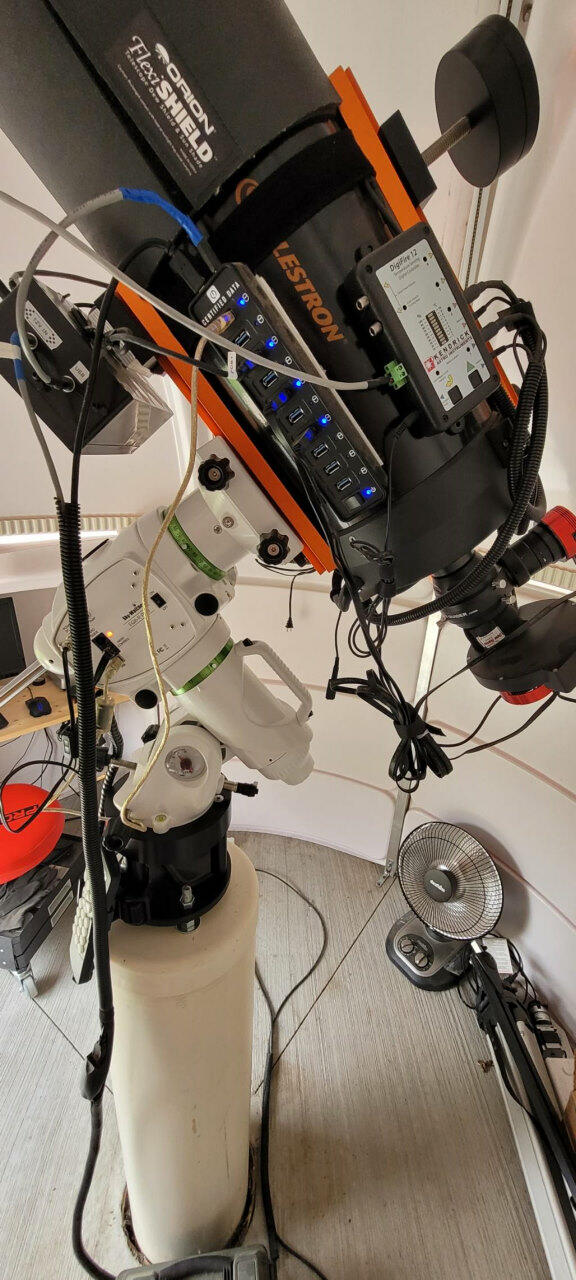

I purchased the EQ6-R Pro Mount as a replacement for a a CGEM that was fine for visual observing but just not up to the requirements of >1000mm focal length astrophotography from my backyard observatory. My routine guiding performance has gone from >2 arc seconds with the CGEM to <0.6 arc seconds with the EQ6-R Pro, which means that I am now experiencing guiding that is limited by the seeing instead of the precision of the mount. The belt drives make a huge difference in backlash, and I would not purchase a mount of this class that does not have them. I do not think I could get better guiding performance even with encoders, since I seem to be limited by the seeing. I am very happy with the performance of the mount, which is well matched to my 8" SCT using OAG.

A
A.H.
Skywatcher EQ6-R mount

The Skywatcher EQ6-R mount is the best mount that I have seen in this payload range. The positives of this mount are:
The extremely quiet movement due to belt drives
The large payload of 44 pounds
Grab handle for mount setup
USB port for easy computer control using EQMOD
Dual counterweights with retractable bar
The saddle accepts a wide variety of OTAs with two locking knobs
The tripod is solid with good locks

The only thing I dislike about this mount is the spring-loaded wrench for adjusting the alt setting of the mount. This doesn't work well and is easily stripped.

I highly recommend this mount.
