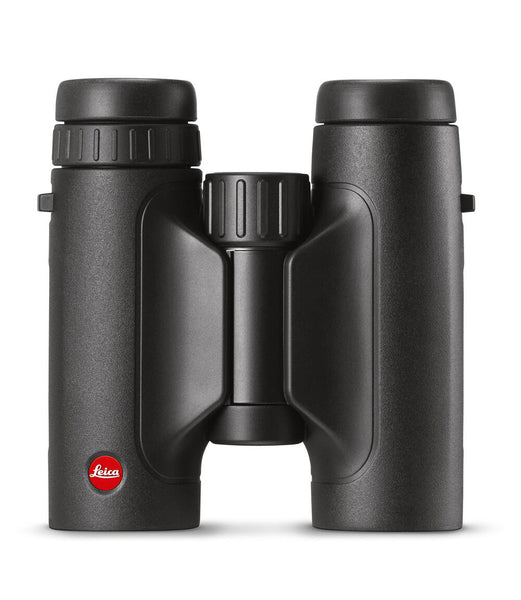

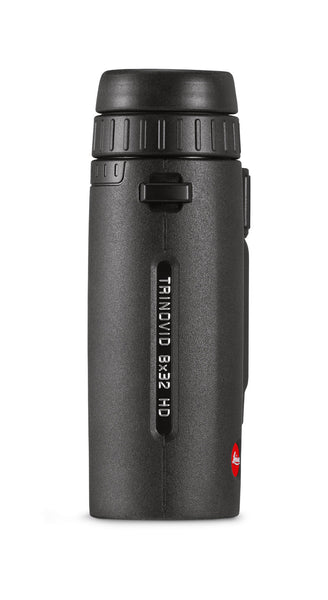

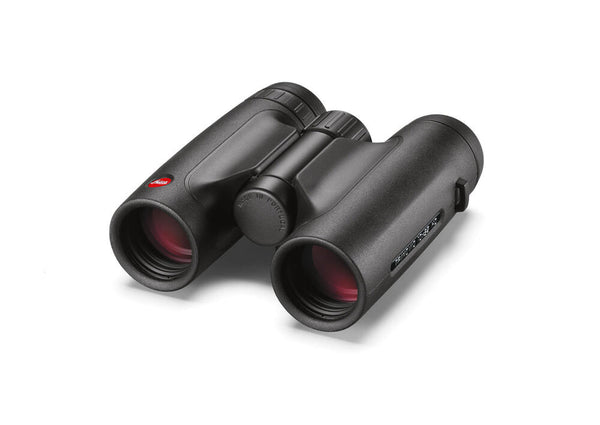

Leica 8x32 Trinovid HD Binoculars (40316)

40316

Brand: Leica

Leica 8x32 Trinovid HD Binoculars (40316)

40316

Leica puts a new spin on their perennial favourite, the 8x32 Trinovid HD Binoculars with phase corrected prisms, and anti-reflection fully multi-coated optics to boost light transmission through the lenses.
  • Phase-Corrected Roof Prisms
  • Fully Multi-Coated Optics
  • 54° Apparent Viewing Angle
  • Short 1m Close Focus Distance
  • Nitrogen Filled, Water/Fogproof
  • Lightweight Magnesium-Alloy Chassis
  • Large Center Focusing Knob
  • Tripod Mountable with Optional Adapter
  • Twist-Up Click-Stop Eyecups
🚚 Ships in 2-4 Weeks
💳 Don't Pay Until Ready to Ship
💲 This item may require a deposit.
$1,329.00 CAD
$1,329.00 CAD
Free Expert Support
Stress Free, Secure Shopping
30 Day Return Policy
Price Match Promise

Recommended Accessories

Product Description

The new Trinovid HD 32 binoculars are extremely flexible in their use and convince with their optical performance, easily understandable handling and timeless design. With its proven Leica HD optics, the Trinovid HD offers the perfect combination of modern light transmission, vivid and brilliant neutral colors, contrasts and sharpness. It is shockproof and has a safe grip thanks to the robust and resistant rubber armoring even when put under considerable stress. The package is completed by a well though-out, comfortable neoprene carrying system that ensures quick access and safe storage. Ideal for even more breathtaking observations anytime anywhere.

Complementing the views produced by the Trinovid HD are construction details that make this optic able to stand up to the rigors of a life lived on the trail. First is a lightweight, sturdy, and corrosion-resistant magnesium alloy chassis that makes this binocular light and easy to handle. The body is covered with a textured rubber armor that protects it from bumps and impacts while giving it a slip-resistant grip in cold or wet conditions. Its optical tubes are nitrogen-filled and O-ring sealed to make it waterproof and submersible as well as fogproof when moving between extreme temperature fluctuations. To make handling the Trinovid easier are tethered objective lens covers that flip down and out of the way for observing, plus an ocular rainguard that attaches to the strap.

Optical Performance

  • 8x magnification
  • 32mm objective lens
  • Compact roof prism optical path
  • P40 phase corrected prism coatings increases contrast and provides true color rendition
  • HLS (HighLux System): Highly reflective coatings on prisms reduce internal light loss
  • HDC anti-reflection fully multi-coatings increase light transmission throughout optical path
  • 372' field of view at 1000 yards
  • 54° apparent angle of view
  • Short 1m close focus distance

Use and Handling

  • Closed bridge configuration
  • 4-position click-stop twist-up rubber eyecups
  • Tripod mountable with optional adapter
  • ±4 right-eye dioptric correction
  • Long 17mm eye relief
  • Wide 4mm exit pupil

Construction Details

  • Lightweight and durable magnesium alloy housing
  • Black, protective, textured rubber provides slip-resistant grip
  • Nitrogen-filled, water and fogproof. Submersible to 13' (4m)
  • Tethered objective lens caps
  • Weight: 22.5 oz

What's in the Box

  • Leica 8x32 Trinovid HD Binoculars
  • Neoprene Carrying Strap
  • One-Piece Ocular Rainguard
  • 2 x Objective Lens Caps

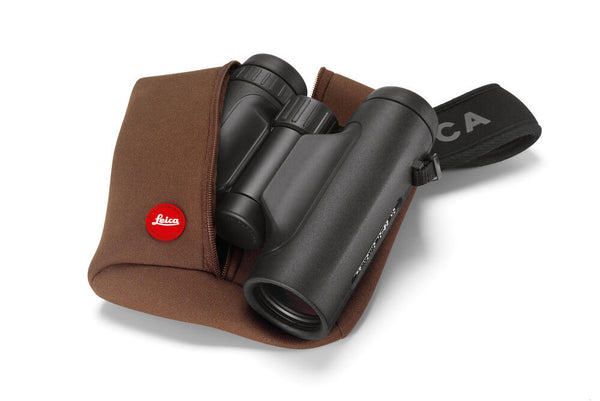

  • Cordura Bag
  • 10-Year Accidental Damage Passport Warranty & 30-Year Manufacturer's Defect Warranty

Specifications

Model Trinovid 8x32 HD Trinovid 10x32 HD Trinovid 8x42 HD Trinovid 10x42 HD
Magnification 8 x 10 x 8 x 10 x
Front Lens Diameter 32 mm 32 mm 42 mm 42 mm
Exit Pupil 4.0 mm 3.2 mm 5.25 mm 4.2 mm
Eye Relief 17 mm 16 mm 17 mm 15 mm
Twilight Factor 16 17.9 18.3 20.5
Light Transmission 90 % 90 % 90 % 90 %
Field of view at 1,000 yds / 1,000 m 372 ft / 124 m 342 ft / 114 m 372 ft / 124 m 339 ft / 113 m
Subjective Angle of View 53.3° 61.8° 54° 61°
Close Focusing Distance approx. 3.28 ft / 1 m approx. 3.28 ft / 1 m approx. 5.9 ft / 1.8 m approx. 5.3 ft /1.6 m
Diopter Compensation ± 4 diopters ± 4 diopters ± 4 diopters ± 4 diopters
Eyepieces for Eyeglass Wearers yes, removable, with 4 click stops yes, removable, with 4 click stops
Adjustable Interpupillary Distance 58 – 76 mm 58 – 76 mm 58 – 76 mm 58 – 76 mm
Focusing Internal focusing via central focusing device Internal focusing via central focusing device
Watertightness Watertight to a depth of 13.1 ft / 4 m Watertight to a depth of 13.1 ft / 4 m
Dimensions (W x H x D) 4.6 x 5.1 x 2.6 in
117 x 130 x 65 mm
4.6 x 5.1 x 2.6 in
117 x 130 x 65 mm
4.6 x 5.5 x 2.6 in
117 x 140 x 65 mm
4.6 x 5.5 x 2.6 in
117 x 140 x 65 mm
Weight approx. 22.22 oz / 630 g approx. 22.58 oz / 640 g approx. 25.75 oz / 730 g approx. 25.75 oz / 730 g

Customer Reviews

Based on 1 review
0%
(0)
0%
(0)
100%
(1)
0%
(0)
0%
(0)
R
R.A.
Not as good as I had hoped

Bought these binos to replace my old Leitz 8x32b. While the image quality is definitely perfect (mostly due to more modern coatings I guess), these binos are way less comfortable to use. First off, the field of view is narrower even comparing to my old Leitz 8x32B, which already had a reduced field comparing to the regular 8x32. Second, the eye placement can be tricky and definitely less forgiving than the one on my Leitz. Third, a weil-like artifact appears when you are looking slightly up and the skies are bright. Fourth, in order to get the maximum FOV I have to keep the eye cups fully extended, and my eyes are rather deeply set in the sockets. So if your eyes are not set deeply, then you likely won't be able to hold the binos the way I personally prefer - when eye cups slightly touch my eye sockets or brows.
Overall, the image quality, the build quality and the focusing mechanism are amazing, but from usability perspective these binos are not as good. I have never experienced such usability issues with my good old Leitz 8x32B.
