Brand: SharpStar

SharpStar 50EDPH Premium APO ED Triplet Refractor (50EDPH)

50EDPH

Brand: SharpStar

SharpStar 50EDPH Premium APO ED Triplet Refractor (50EDPH)

50EDPH

The Sharpstar 50EDPH is a high-quality, versatile portable small aperture astrograph.
  • Triplet APO design
  • ED glass
  • 50mm aperture
  • 275mm focal length
  • Retractable lens hood
  • Finder base
  • Tripod female thread
  • 1.25'' visual adapter
  • 1: 10 fine adjustment
  • 196mm total length
  • 360° rotator
  • Vixen Dovetail plate
  • Gross weight 1kg
  • 2-section extension tube

All new 50EDPH scopes come with a ring mounted dovetail bar for mounting instead of the original screw mounted dovetail bar.

$539.95 CAD

Easy Payment Options with .

What is a Backorder?
$539.95 CAD

Easy Payment Options with .

What is a Backorder?
Free Expert Support
Stress Free, Secure Shopping
30 Day Return Policy
Price Match Promise

Recommended Accessories

Full Details What Can I See? What's in the Box? Specifications Reviews and Questions Articles, Videos, Software, Links

Product Description

All new 50EDPH scopes come with a ring mounted dovetail bar for mounting instead of the original screw mounted dovetail bar.

The Sharpstar 50EDPH is an OTA with a 50mm aperture, 275mm focal length, and f/5.5 native focal ratio.

The 50EDPH is compact and lightweight, with a gross weight of 1.0kg (including the dovetail plate) and a total length of 196mm.

With excellent optical quality, user-friendly mechanical design, and a size that can be grasped in one hand, the 50EDPH is a perfect choice for daily observation and shooting.

The 50EDPH is a triplet air-spaced APO design, including two pieces of ED glass. The triplet design is rare for a telescope of such a small aperture, and the chromatic aberration control is exceptional.

The Sharpstar 50EDPH has a retractable lens hood to further shorten the overall length and increase portability.

The Sharpstar 50EDPH has a 70mm Vixen-style dovetail plate, which slotted 1/4-20 threaded holes, making it not only adapt to most equatorial mounts but can also be mounted on a tripod for use.

Before the focuser, Sharpstar 50EDPH design a 360°rotator, which is also equipped with a rotator locking screw.

The Sharpstar 50EDPH's focuser is a dual-speed rack and pinion rigid focuser, with a 1:10 precision fine adjustment knob and an overall travel length of 60mm.

The rear end of the Sharpstar 50EDPH is equipped with a 1.25" adapter, which can attach a 1.25" diagonal and eyepiece for visual observation.

It is worth mentioning that the Sharpstar 50EDPH also comes standard with two sections of 5cm M48 extension tubes. The extension tubes can be connected to the eyepiece for visual observation instead of the diagonal, or to a planetary camera for planetary imaging.

The Sharpstar 50EDPH has an optional 0.84x reducer that can be chosen, the 0.84x reducer can bring the Sharpstar 50EDPH's focal ratio down to f/4.6. This is a standard reducer with field flattening capabilities as well. The 50EDPH's reducer supports the APS-C frame, The 0.8x reducer is equipped with an M48 adapter and comes with a built-in M48*0.75 2" filter thread for direct filter mounting.

Small size and big function, easy to put the exploration into your pocket. Hope you can enjoy the mysteries of the universe with the Sharpstrar 50EDPH anytime, anywhere.

What can I see with a SharpStar 50EDPH Premium APO ED Triplet Refractor (50EDPH)?

Here are some simulated views of common objects. Results with your telescope will vary with viewing conditions, obrits, equipment and more.

Jupiter with

25mm Eyepiece - 11x Magnification

(Sold Separately)

Jupiter with

10mm Eyepiece - 28x Magnification

Sold Separately

Jupiter with

5mm Eyepiece - 55x Magnification

Sold Separately

Moon with 25mm Eyepiece

11x Magnification

(Sold Separately)

Moon with 10mm Eyepiece

28x Magnification

Sold Separately

Moon with 5mm Eyepiece

55x Magnification

Sold Separately

Andromeda with 36mm Eyepiece

8x Magnification

Sold Separately

Andromeda with 25mm Eyepiece

11x Magnification

(Sold Separately)

Andromeda with 10mm Eyepiece

28x Magnification

Sold Separately

What's in the Box

  • a 50EDPH OTA
  • 2-section 5cm M48 extension tube
  • a 70mm Vixen-style dovetail plate

Specifications

Aperture Size 50mm
Focal Length 275mm
Limiting visual Magnitude 10.3
Focal Ratio f/5.5
Tube Length 196mm (When contracted)
Gross Weight 1.0kg
Read-end Thread Type 1.25 visual adapter
Objective Lens Triplet air-spaced APO (including an ED glass)



Product Size Diagram



Locking Screw Position Diagram

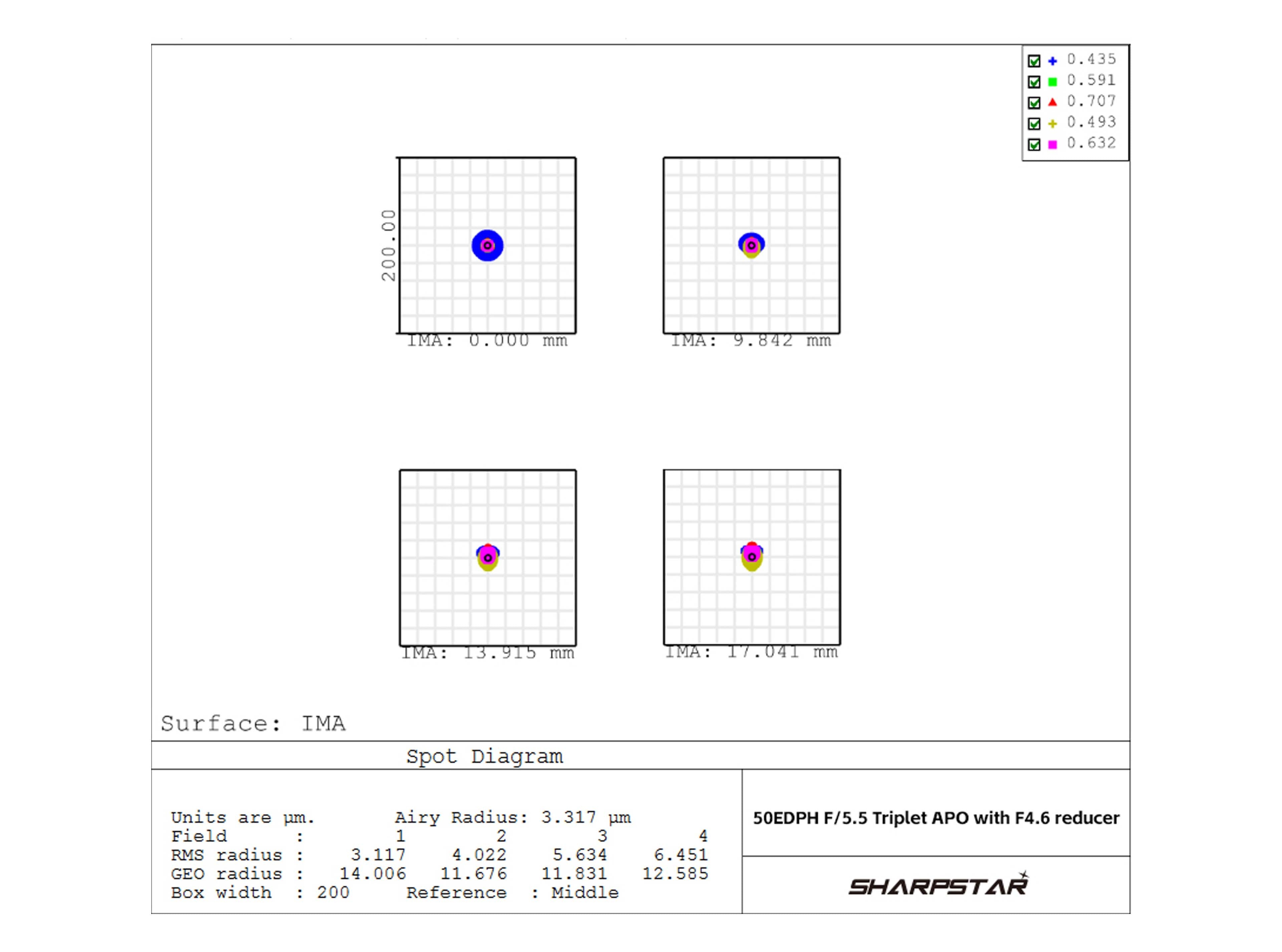

Spot Diagram

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
K
K.B.
Little gem

Actually purchased this 50 mm triplet for a grab n go visual instrument and the optics live up to the name sharpstar ! The moon, Jupiter and Saturn using the televue 3-6 mm zoom were excellently detailed for a 50 mm , greenish Orion Nebula with the trapezium bluish stars were a treat as well as many double stars and bright deep sky objects of the winter sky , love my little gem !
Kevin Belcher
